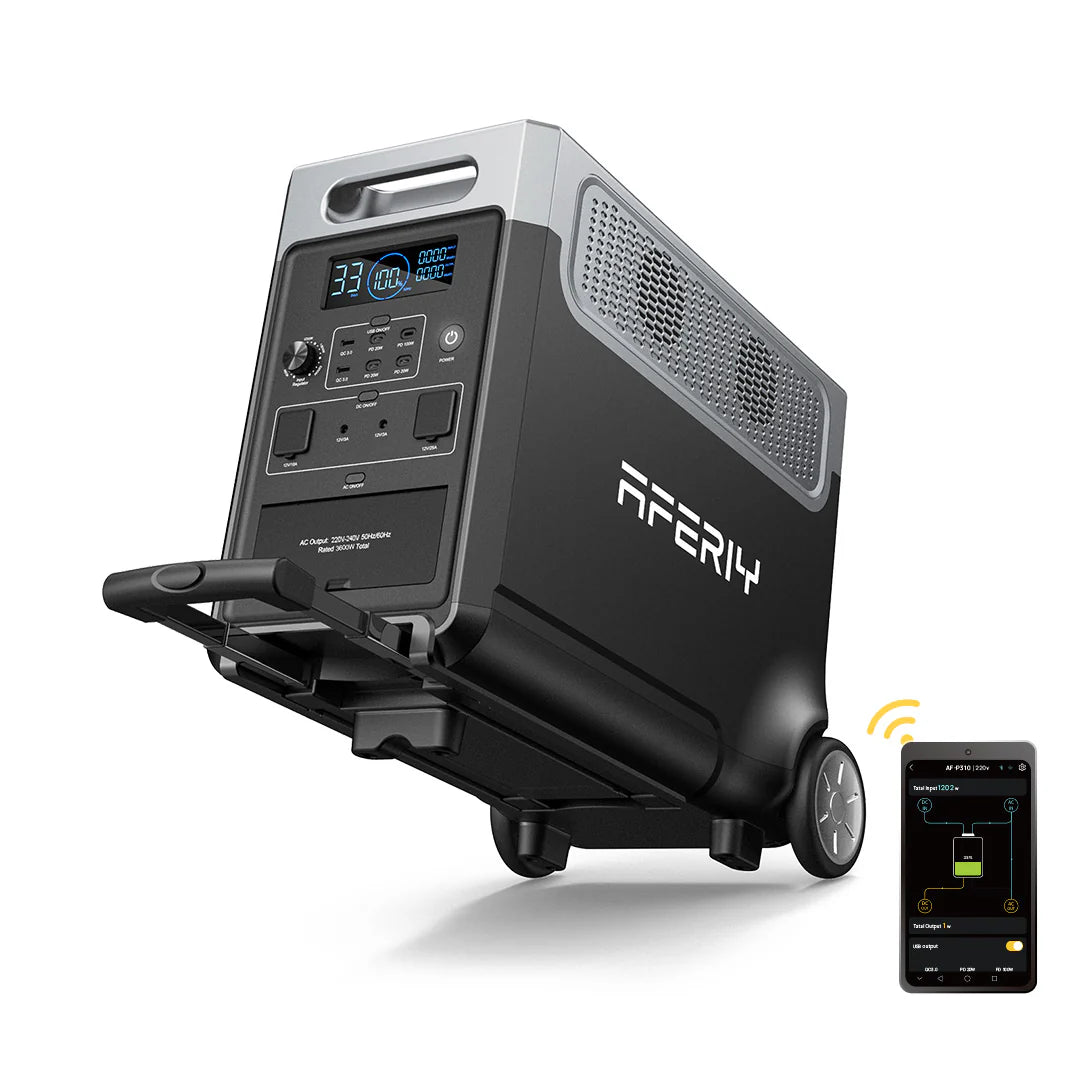

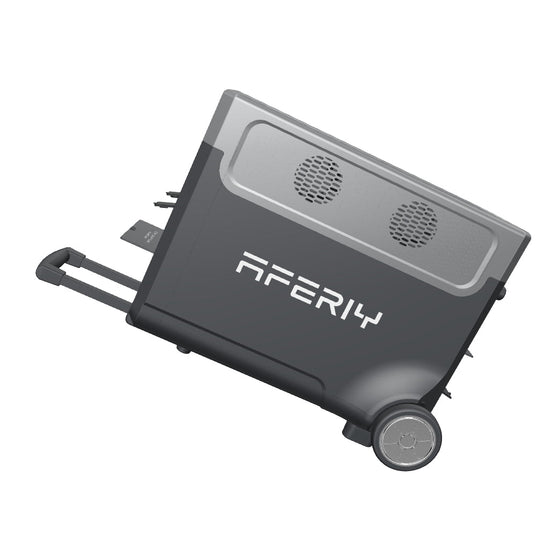

AFERIY P310 3600W 3840Wh Expandable Portable Power Station

The rated capacity of the AFERIY P310 is 3840Wh. In real-world use, the actual usable output capacity may be slightly lower due to the following factors:

Battery lifespan protection

To extend the lifespan of the battery, the system does not allow the battery to fully discharge. Even when the display shows 0%, around 5% of energy remains reserved inside the battery pack.

Internal power consumption

When the AC output switch is turned on, the power station itself consumes approximately 20–25W per hour. The longer the AC output remains active, the more internal power is consumed.

Energy conversion losses

The battery pack stores energy in DC, which must be converted to AC via the inverter when powering appliances. The conversion efficiency is around 90%, and additional minor losses occur through internal circuitry.

Because of these factors, the actual usable output capacity will always be slightly lower than the nominal capacity.

The main differences are:

P310

A portable power station with 3600W output power and 3840Wh capacity. It can operate independently and power various appliances directly.

It supports multiple charging methods including:

•
  Mains (AC) charging

•
  Solar charging

•
  Car charging (12V/24V)

•
  Generator charging

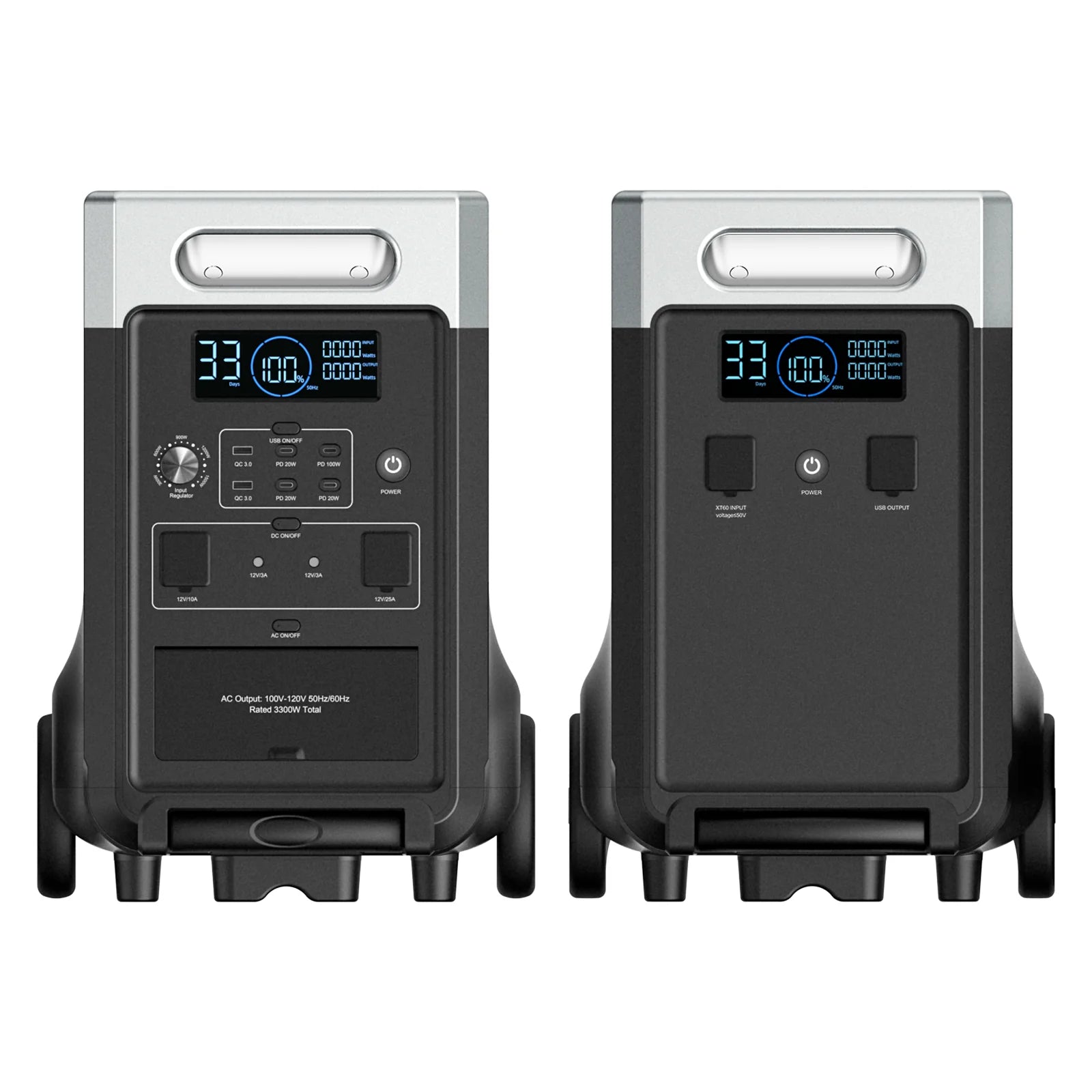

P310B

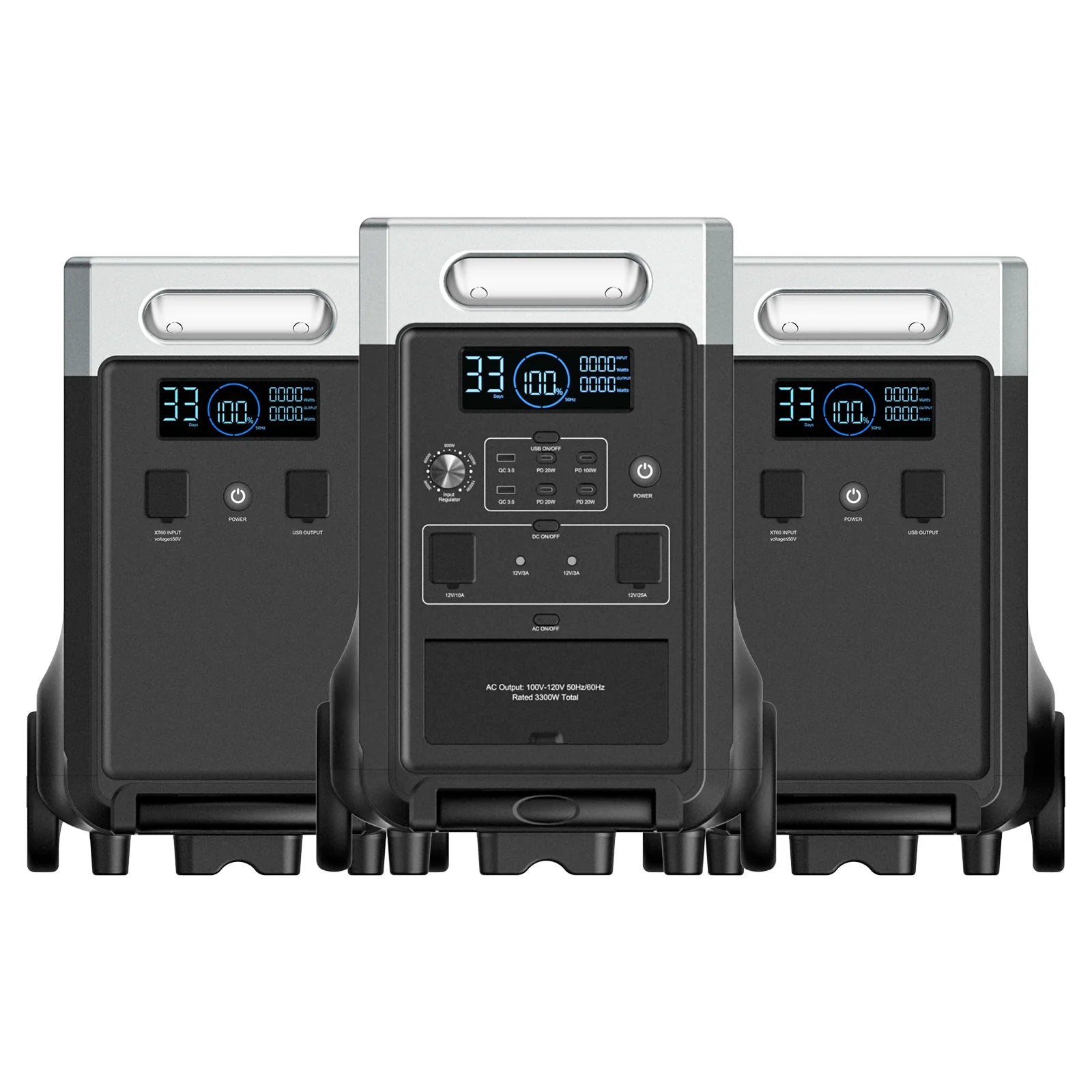

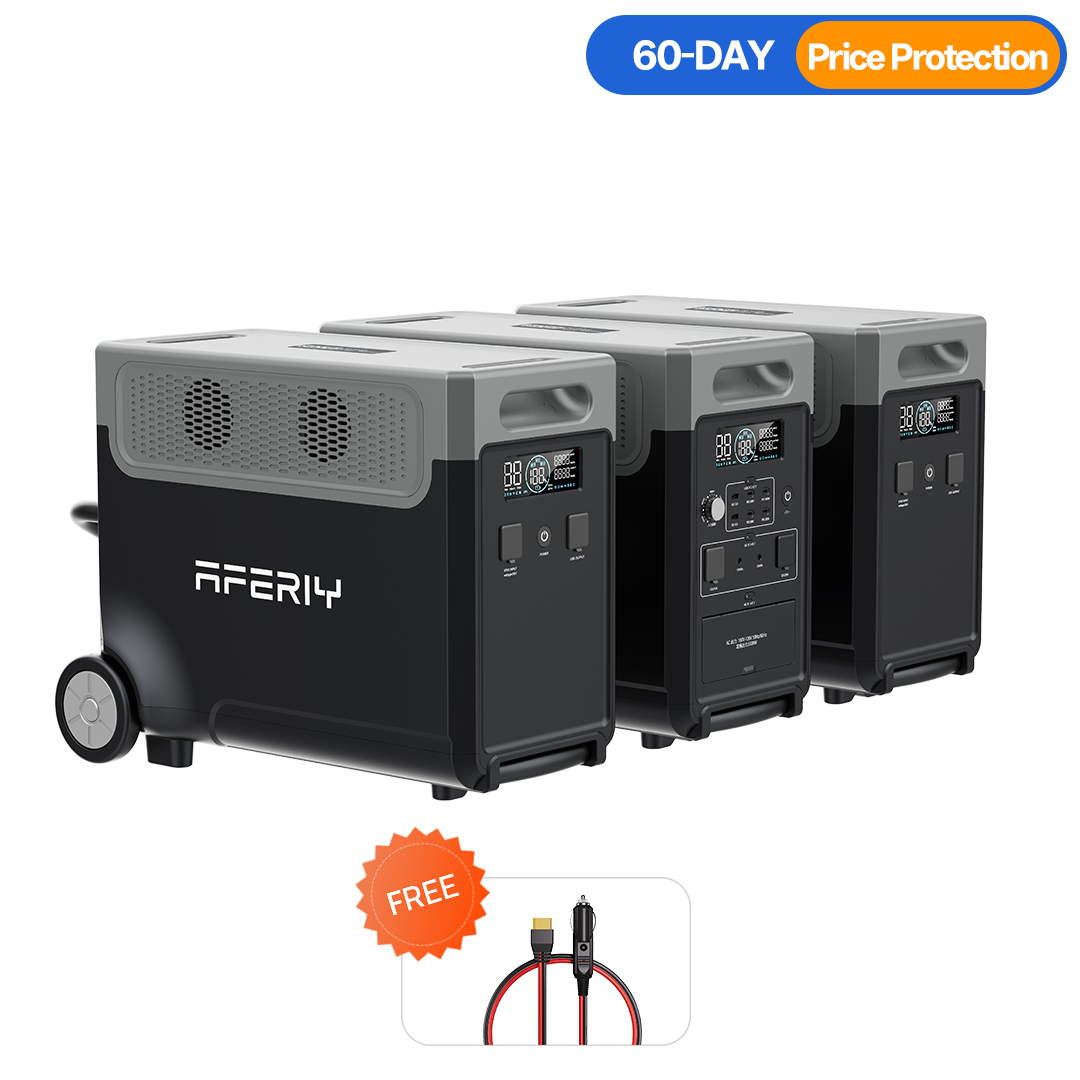

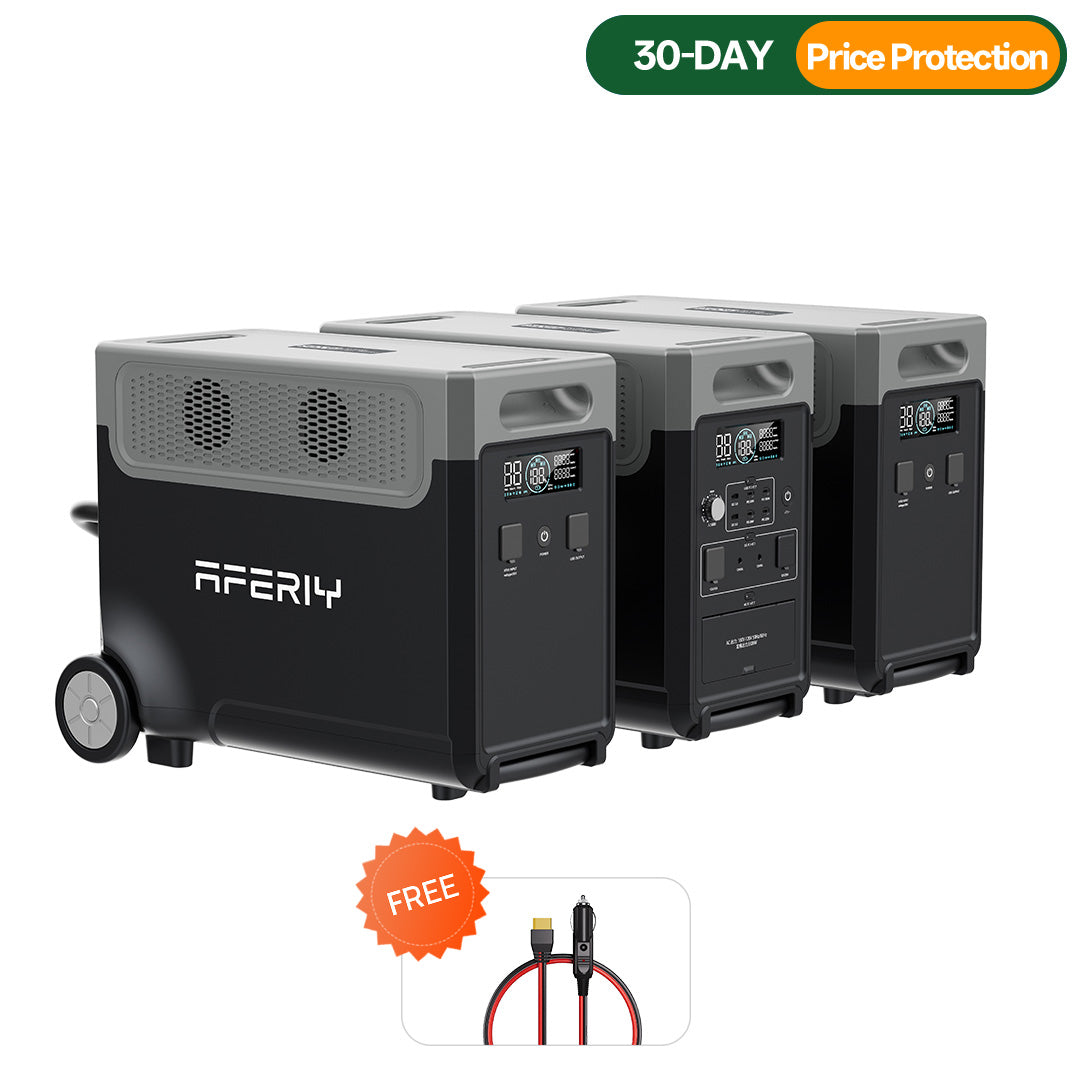

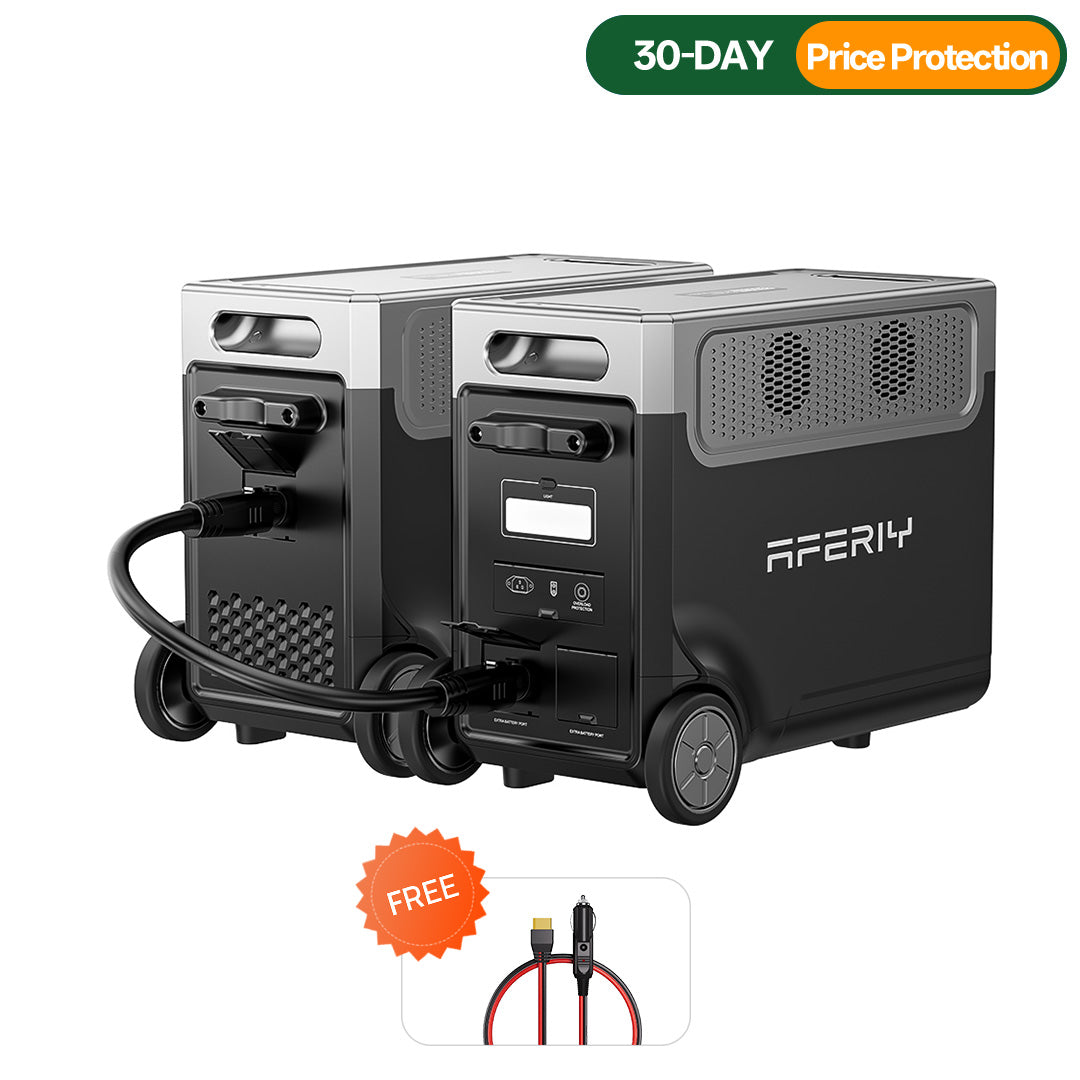

A 3840Wh expansion battery. It cannot operate on its own and must be connected to the P310 to increase the total battery capacity and extend runtime.

Summary:

•
  P310: Main power station, works independently

•
  P310B: Expansion battery designed to increase the P310’s capacity

The mobile application is called BrightEMS.

•
  Android users: Download it from Google Play

•
  iOS users: Download it from the Apple App Store


After installation:

1.
   Select your region

2.
   Create an account and log in

3.
   Go to Add Device


The app will automatically search for nearby devices. Please ensure Bluetooth is enabled.

If you want to add a specific model manually:

•
  Select “Add Device Manually”

•
  Choose the corresponding model


Once the device is detected, tap it to pair.

During setup you will also configure the network connection.

Please note: only 2.4 GHz Wi-Fi networks are supported.

The app allows you to monitor and manage your AFERIY P310 portable power station in real time, making operation more convenient and efficient.

Main features include:

•
  Device pairing and unpairing

•
  Viewing Wi-Fi and Bluetooth status and network configuration

•
  Monitoring input/output power and battery status

•
  Controlling USB, AC, DC outputs and LED lighting

•
  Adjusting DC charging mode and maximum current

•
  Configuring AC charge and discharge parameters

•
  Enabling or disabling button sound

•
  Setting sleep mode and screen timeout

•
  Smart management features such as scheduled charging and energy-saving mode


The app provides a more convenient and intelligent way to manage your P310 power station.

Yes.

The AFERIY P310 can be used as an uninterruptible power supply (UPS).

Please ensure the corresponding AC output switch is turned ON on the power station.

The UPS function works when:

•
  The power station is connected between a wall socket and your appliance

•
  The main power switch and AC output switch are both turned ON


In this setup, the device will automatically operate in UPS mode.

No.

The cooling fan does not run continuously.

It will automatically start when the internal temperature exceeds 60°C.

Under normal operation, the unit runs quietly.

When the cooling fan activates, the noise level is below 60 dB.

Without AC output enabled

If the unit is powered on but no operation occurs and the output power is below 8W, the system will automatically shut down after 5 minutes.

With AC output enabled

If the unit is powered on and the standby output power is 15–25W, the system will automatically shut down after 8 hours.

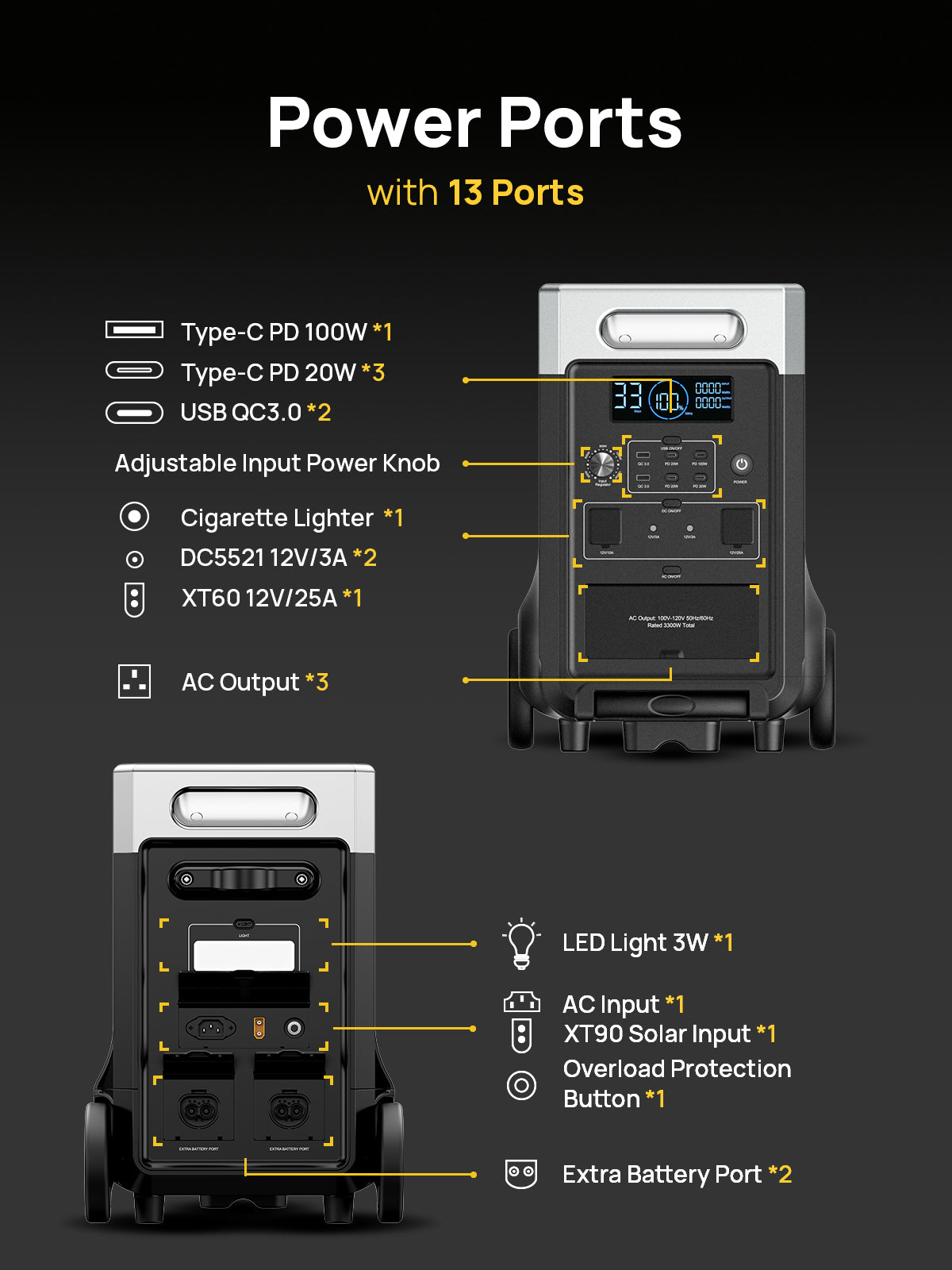

The AFERIY P310 (3600W / 3840Wh) includes 13 output ports, allowing it to power up to 13 devices simultaneously:

•
  3 × AC outlets (220–240V, 3600W)

•
  2 × USB-A ports (QC3.0 18W)

•
  3 × USB-C ports (20W)

•
  1 × USB-C PD port (100W)

•
  2 × DC ports (12V, 3A)

•
  1 × Car socket (12V, 10A)

•
  1 × XT60 port

Yes, as long as the solar panels meet the input specifications.

The P310 supports a maximum solar input of:

•
  2000W

•
  160V

•
  20A


Solar panels can be connected in series or parallel, provided these limits are not exceeded.

Example combinations using AFERIY AF-S400A1 (400W) panels:

•
  1 × 400W panel

•
  2 panels in series (800W)

•
  3 panels in series (1200W)

•
  4 panels in series (1600W)

•
  5 panels in series (2000W)


Choosing the correct configuration helps optimise solar charging efficiency.

The AFERIY P310 (3600W / 3840Wh) supports multiple charging methods for flexibility.

Mains charging (wall socket)

Max input: 2200W

Charging time: about 2 hours

Solar charging

Max input: 2000W

Charging time: about 2.5 hours (under optimal sunlight)

Generator charging

Generator must provide pure sine wave output above 2200W

Charging time: about 2 hours

Hybrid charging (AC + solar)

Max input: 4200W (2200W AC + 2000W solar)

Charging time: about 1.2 hours

Car charging (12V / 24V)

Charging time varies depending on the vehicle voltage and will generally be slower.

Yes, it can remain connected.

However, at sunrise or sunset, you may hear a clicking sound.

This is caused by the internal protection relay and is normal.

It will not damage the power station or the solar panels.

Please note that the power station may experience minor self-consumption when connected to solar panels with no incoming power.

For best results, it is recommended to:

•
  Connect solar panels during the day

•
  Disconnect them at night when there is no charging input

Yes.

You will need a car charging cable (XT90 connector).

Please ensure the cable supports a current above 10A.

No.

If the internal battery fails or malfunctions, please contact AFERIY customer support.

No.

Capacity expansion is only supported through the AFERIY P310B expansion battery.

If the unit will not be used for more than 3 months:

•
  Keep the battery level at 60%–80%

•
  Check and recharge every 3 months


Storage conditions:

•
  Store in a cool, dry place

•
  Avoid corrosive substances

•
  Keep away from heat sources and open flames

AC voltage standards vary by country.

Units purchased before December 2023

Press the AC button quickly 10 times to switch between 220V and 240V.

Units purchased after December 2023

Manual switching is not required.

The system automatically adapts to 220–240V output, depending on input voltage and load requirements.

Units purchased before December 2023

Press and hold the AC button for 3 seconds to switch between 50Hz and 60Hz.

Units purchased after December 2023

The frequency automatically adjusts, so manual switching is not necessary.

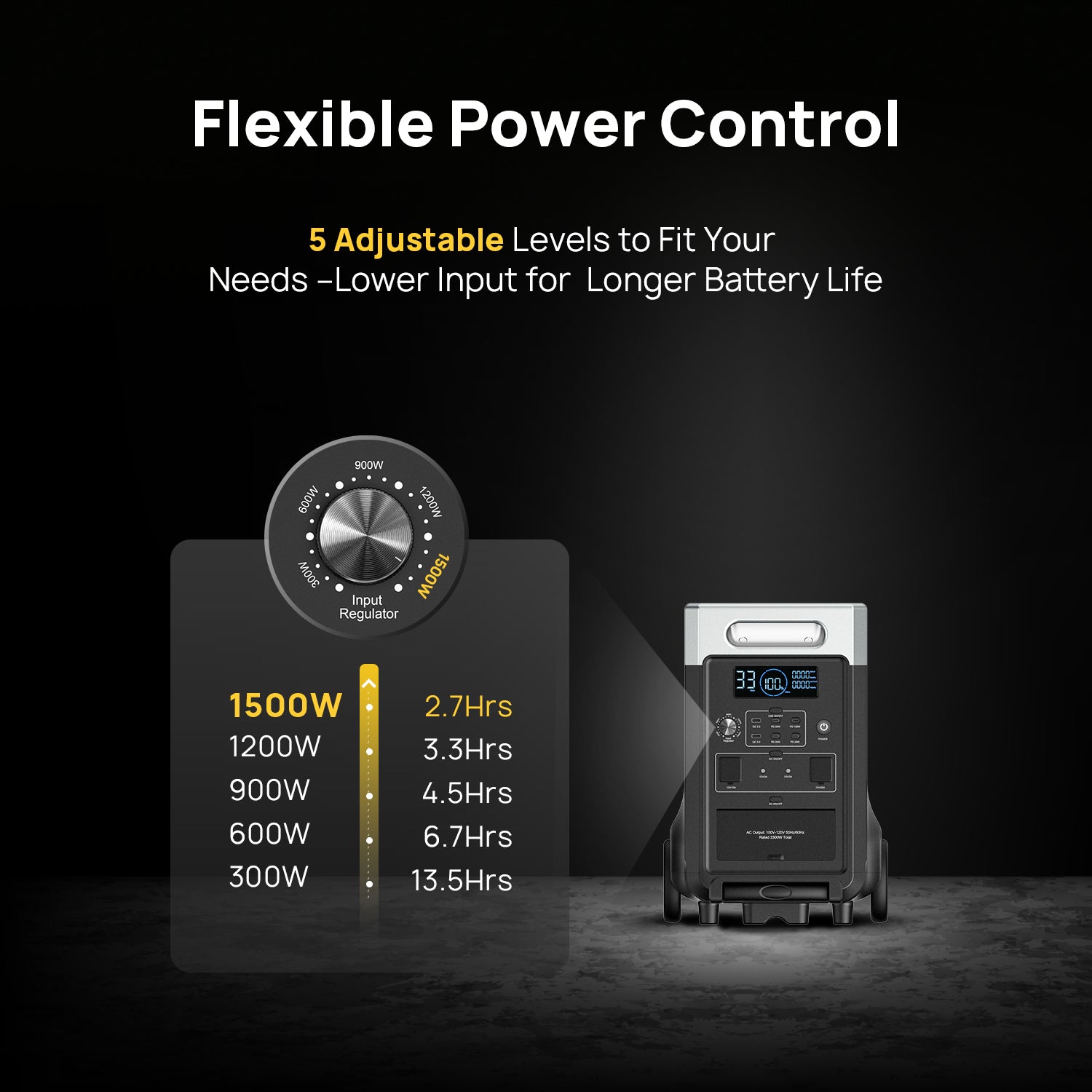

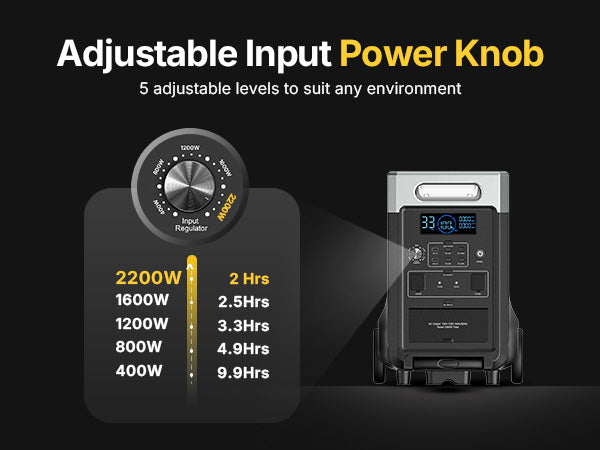

Units purchased before December 2023

Manual adjustment is not supported.

Units purchased after December 2023

The AC input power can be adjusted.

To change the input power:

1.
   Press and hold the AC button for 10 seconds

2.
   Enter the power adjustment interface

3.
   Select the desired AC input power level


Available levels:

•
  400W

•
  800W

•
  1200W

•
  1600W

•
  2200W


After 5 seconds, the system will automatically save the setting and return to the main screen.

Note: The total charging power must remain below 3600W.
