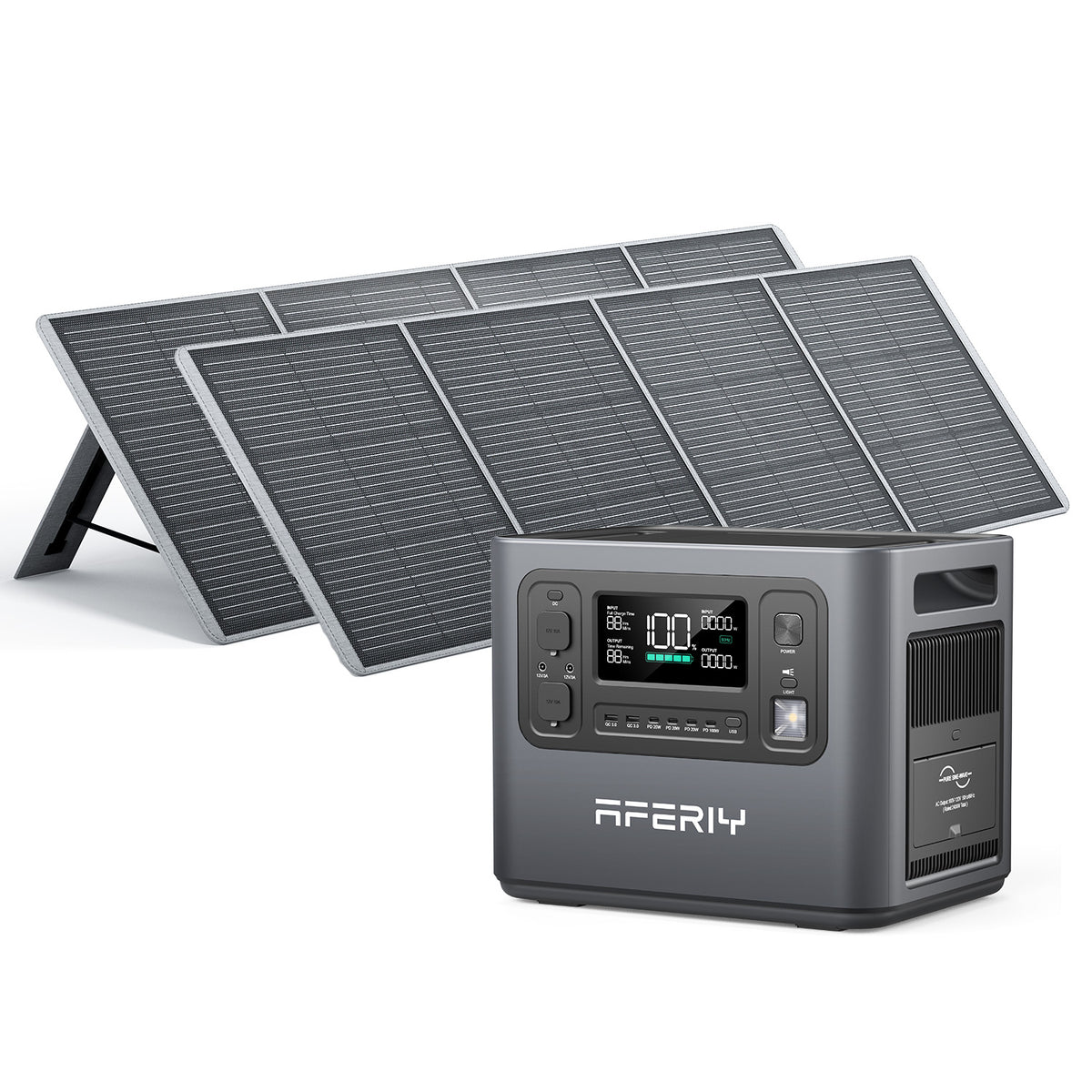

AFERIY P210 2400W Solar Generator Kit

In the upgrade of our self-developed technology, we have upgraded some of the functions in combination with the buyer's suggestions for 2001A:

(1) AF-P210 has a larger capacity of 2048Wh and a larger power of 2400W;

(2) AF-P210 improves battery quality and extends battery life;

(3) AF-P210 comprehensively repaired the customer complaint points of AF-P210;

(4) A storage box is added to the top of the AF-P210;

(5) AF-P210 has a design upgrade in appearance;

(6) AF-P210 extends warranty to 7 years (2001A-5 years);

(7)The solar/car charging input port of P210 is XT90 (input port of 2001A is Anderson);

Yes, please note that you need to turn on the corresponding output switch on the portable power station.

When the portable power station is connected between an AC wall socket and household appliances, and the power and AC switch of the portable power station are in the ON state, the product enters UPS (Uninterruptible Power Supply) mode of operation.

The cooling fan will not work all the time, only when the internal temperature of the power station machine is higher than 60 degrees, the cooling fan will automatically rotate and start to work.

It is silent during normal operation and when the cooling fan is activated, the sound is below 60 dB.

Without turning on the AC switch, if the portable power bank is powered on with no further operations, the standby power consumption will be automatically set to no output if it is less than 8W, and the machine will automatically shut down after 5 minutes.

With the AC switch turned on, if the portable power bank is powered on with no further operations, the standby power consumption will be automatically set to no output if it is between 15W to 25W, and the machine will automatically shut down after 8 hours.

Many motors or compressors generate a brief surge of inrush current when starting up, which significantly exceeds their rated running power. This initial current demand can be several times the rated power, typically ranging from 2 to 7 times. This surge may exceed the power capacity of the AFERIY P210 2400W Portable Power Station, preventing the equipment from starting. Examples of such devices include water pumps, air conditioning compressors, and refrigerator compressors.

The US/JP plug standard has 6 AC outlets (100-120V), while the UK/European plug standard has 3 AC outlets (220-240V).

Yes, AFERIY AF-P210 is compatible with most other brands of solar panels in the market. It is also compatible with AFERIY solar panels: AF-S200, AF-S100, AF-S400. Please note that the AFERIY AF-P210 supports a maximum input voltage of 48V, a maximum input power of 500W, and a maximum input current of 20A.

Yes, AFERIY portable power station can be continuously connected to a solar panel. but during sunrise or sunset, the solar panel may emit a ticking sound (due to the internal installation of a relay in the AFERIY portable power station, which serves as a protective circuit).This sound is normal and will not damage the power station or the solar panel. Additionally, please note that the portable power bank will experience slight power consumption when connected to the solar panel without any power input.
Therefore, it is recommended to only connect the solar panel during the day and disconnect it when there is no charging effect at night.

This depends on the combined power, voltage, and current of the solar panels you choose. You can connect the solar panels in either parallel or series. Please note that the AFERIY AF-P210 supports a maximum input voltage of 48V, a maximum input power of 500W, and a maximum input current of 20A. If you are connecting AFERIY's solar panels, you can either connect one AF-S200 (200W*1) or simultaneously connect two AF-S200 (200W*2) solar panels for charging.

Yes, Only one ACC car charging cable (XT90 connector) is needed. Please note that the car charging cable is capable of carrying a current greater than 10A.

No. If the internal battery pack malfunctions, please contact AFERIY Customer Service.

No.

If the battery is to be unused for a long time (more than 3 months), it should be maintained at 60-80% of the rated capacity (it's recommended to check and charge every 3 months). Store it in a dry and cool place. Avoid contact with corrosive substances, and be far from fire and heat sources.

The standard for AC output voltage varies by country. Please check the AC voltage of your device before use. The procedure is as follows: If you purchased the device before December 2023, rapidly press the AC button 10 times to switch the AC output voltage between 220V and 240V. If you purchased the device after this date, there is no need to manually switch the voltage, as the device will automatically adapt to an AC output voltage of 220-240V. However, the exact value will depend on the input voltage or the voltage required by the load.

If you purchased the device before December 2023, press and hold the AC button for 3 seconds to switch between 50Hz and 60Hz. If you purchased the device after this date, there is no need to manually switch the frequency, as the device will automatically adapt to the input/output frequency.

If you purchased the device before December 2023, it is not possible to adjust the AC input power. If you purchased the device after this date, the required AC input power may vary depending on the time of use. Please note that the total load power should be less than 2400W. If you need to switch the input power, follow these steps: Press and hold the AC button for 10 seconds to enter power switching mode. The display will show the input power settings interface, where you can set the desired AC input power. If you remain on the current input power settings screen for 5 seconds, the system will automatically save the current power setting and return to the main screen. The input power can be set to 5 levels: 300W/500W/700W/900W/1100W.
